Silicone Hoses Details - Sotond

Views: 164     Author: Site Editor     Publish Time: 2020-08-22      Origin: Site

Qinghe Sotond Industry Co., Ltd is located in Qinghe City, North of China.

In 2014, the annual output value was over 2.5 million. In these years, we have grown up from a small workshop to big professional manufacture. Our staff have increased from 5 people to over 100.

What’s more, 70% of them have worked in this field for over 4 years. Based on a great team, we got the ability to develop different kinds of moulds and products independently.

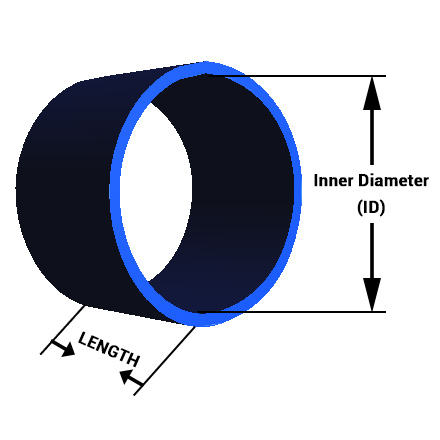

SILICONE STRAIGHT HOSE



SILICONE-STRAIGHT-HOSE4

Application: For connecting the radiator, intercooler, turbocharge and water hose system etc.

Working temp: -50"C to 220°C.

Working pressure: 0.3Mpa to 0.9Mpa.

Bursting pressure: 1.9Mpa.

Color: blue/blac/e/green/ellow/purple/pink/orange.

Tolerance: ±0.5mm.

CODE ID(mm) WALL(mm) PLY(≥) LENGTH(mm)
1 22 4.5±0.2 3 76
2 25 4.5±0.2 3 76
3 28 4.5±0.2 3 76
4 30 4.5±0.2 3 76
5 32 4.5±0.2 3 76
6 35 4.5±0.2 3 76
7 38 4.5±0.2 3 76
And More... And More... And More... And More... And More...

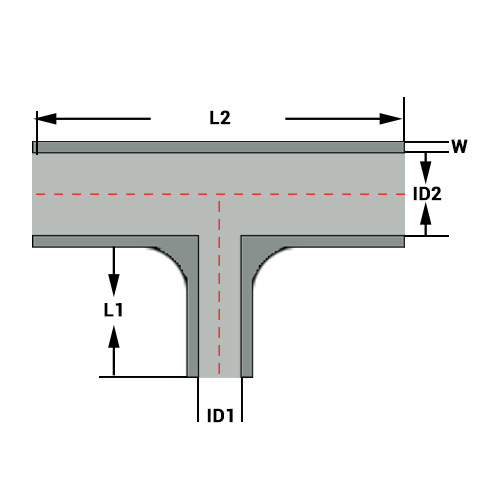

T SILICONE HOSE



T-SILICONE-HOSE2

Application: For connecting the radiator, intercooler, turbocharge and water hose system etc.

Working temp: -50"C to 220°C.

Working pressure: 0.3Mpa to 0.9Mpa.

Bursting pressure: 1.9Mpa.

Color: blue/blac/e/green/ellow/purple/pink/orange.

Tolerance: ±0. 5mm.

CODE ID(mm) ID1 WALL(mm) PLY(≥) L1 L2
1 38 25 4.5±0.2 3 52 102
2 45 25 4.5±0.2 3 52 102
3 51 25 4.5±0.2 3 52 102
4 55 25 4.5±0.2 3 52 102
5 60 25 4.5±0.2 3 52 102
6 63 25 4.5±0.2 3 52 102
7 70 25 4.5±0.2 3 52 102
8 76 25 4.5±0.2 3 52 102
And More... And More... And More... And More... And More... And More... And More...

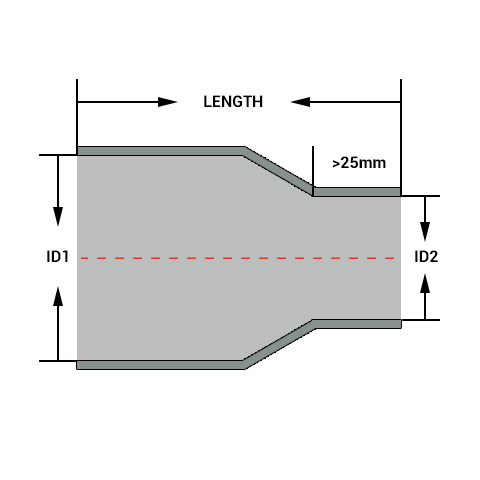

SILICONE REDUCER HOSE



SILICONE-REDUCER-HOSE2

Application: For connecting the radiator, intercooler, turbocharge and water hose system etc.

Working temp: -50"C to 220°C.

Working pressure: 0.3Mpa to 0.9Mpa.

Bursting pressure: 1.9Mpa.

Color: blue/blac/e/green/ellow/purple/pink/orange.

Tolerance: ±0. 5mm.

CODE ID1(mm) ID2(mm) WALL(mm) PLY(≥) LENGTH(mm)
1 16 13 4.5±0.2 3 76
2 19 16 4.5±0.2 3 76
3 22 16 4.5±0.2 3 76
4 32 28 4.5±0.2 3 76
5 35 32 4.5±0.2 3 76
6 38 22 4.5±0.2 3 76
1 38 25 4.5±0.2 3 76
And More... And More... And More... And More... And More... And More...

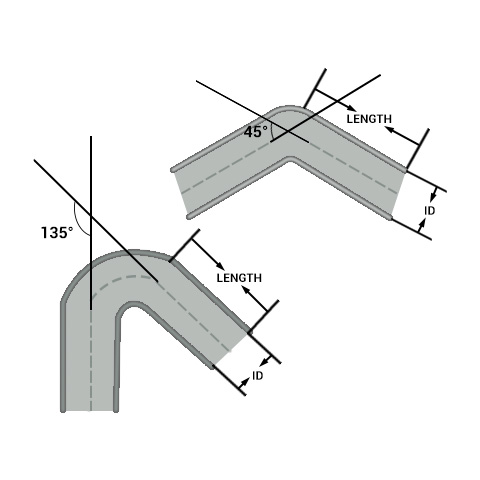

45°or 135° SILICONE ELBOWS



45-or-135-SILICONE-ELBOWS

Application: For connecting the radiator, intercooler, turbocharge and water hose system etc.

Working temp: -50"C to 220°C.

Working pressure: 0.3Mpa to 0.9Mpa.

Bursting pressure: 1.9Mpa.

Color: blue/blac/e/green/ellow/purple/pink/orange.

Tolerance: ±0. 5mm.

CODE ID(mm) WALL(mm) PLY(≥) LENGTH(mm)
1 6.5 4.5±0.2 3 90
2 8 4.5±0.2 3 90
3 11 4.5±0.2 3 90
4 19 4.5±0.2 3 90
5 28 4.5±0.2 3 90
6 32 4.5±0.2 3 90
7 38 4.5±0.2 3 90
8 45 4.5±0.2 3 90
And More... And More... And More... And More... And More...

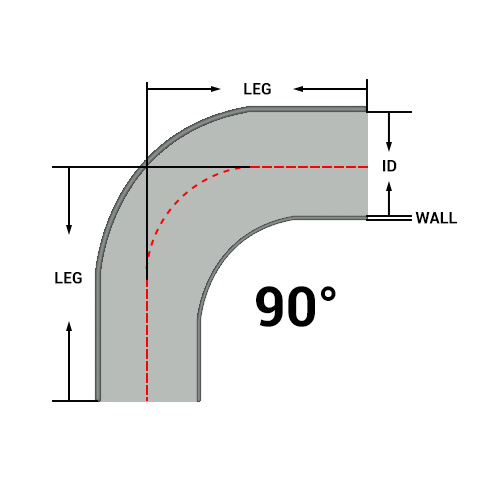

90° SILICONE ELBOWS



90-SILICONE-ELBOWS2

Application: For connecting the radiator, intercooler, turbocharge and water hose system etc.

Working temp: -50"C to 220°C.

Working pressure: 0.3Mpa to 0.9Mpa.

Bursting pressure: 1.9Mpa.

Color: blue/blac/e/green/ellow/purple/pink/orange.

Tolerance: ±0. 5mm.

CODE ID(mm) WALL(mm) PLY(≥) LENGTH(mm)
1 16 4.5±0.2 3 90
2 19 4.5±0.2 3 90
3 22 4.5±0.2 3 90
4 25 4.5±0.2 3 90
5 28 4.5±0.2 3 90
6 32 4.5±0.2 3 90
7 35 4.5±0.2 3 90
8 38 4.5±0.2 3 90
And More... And More... And More... And More... And More...

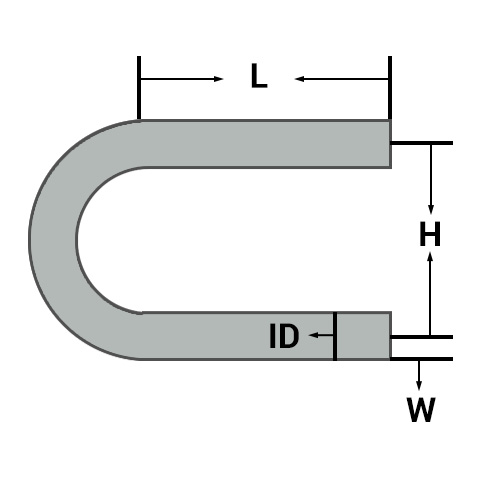

180° SILICONE ELBOWS



180-SILICONE-ELBOWS

Application: For connecting the radiator, intercooler, turbocharge and water hose system etc.

Working temp: -50"C to 220°C.

Working pressure: 0.3Mpa to 0.9Mpa.

Bursting pressure: 1.9Mpa.

Color: blue/blac/e/green/ellow/purple/pink/orange.

Tolerance: ±0. 5mm.

CODE ID(mm) WALL(mm) PLY(≥) LENGTH(mm)
1 16 4.5±0.2 3 102
2 19 4.5±0.2 3 102
3 22 4.5±0.2 3 102
4 25 4.5±0.2 3 102
5 28 4.5±0.2 3 102
6 32 4.5±0.2 3 102
7 35 4.5±0.2 3 102
8 38 4.5±0.2 3 102
And More... And More... And More... And More... And More...

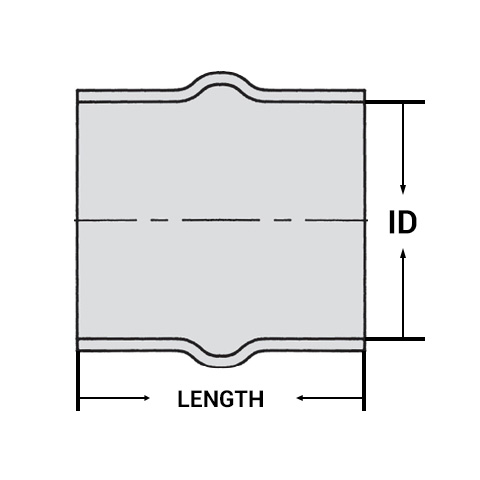

SILICONE HUMP HOSE



SILICONE-HUMP-HOSE

Application: For connecting the radiator, intercooler, turbocharge and water hose systerm etc.

Working temp: -50"C to 220°C.

Working pressure: 0.3Mpa to 0.9Mpa.

Bursting pressure: 1.9Mpa.

Color: blue/blac/e/green/ellow/purple/pink/orange.

Tolerance: ±0. 5mm.

CODE ID(mm) WALL(mm) PLY(≥) LENGTH(mm)
1 25 4.5±0.2 3 76
2 32 4.5±0.2 3 76
3 38 4.5±0.2 3 76
4 51 4.5±0.2 3 76
5 57 4.5±0.2 3 76
6 60 4.5±0.2 3 76
7 63 4.5±0.2 3 76
8 70 4.5±0.2 3 76
And More... And More... And More... And More... And More...













SILICONE VACUUM HOSE



Application: For connecting the radiator, intercooler, turbocharge and water hose systerm etc.

Working temp: -50"C to 220°C.

Working pressure: 0.3Mpa to 0.9Mpa.

Bursting pressure: 1.9Mpa.

Color: blue/blac/e/green/ellow/purple/pink/orange.

Tolerance: ±0. 5mm.

CODE ID(mm) OD(mm) LENGTH(mm)
1 3 7 1000
2 3 8 1000
3 4 7 1000
4 4 9 1000
5 4 10 1000
6 5 9 1000
7 5 10 1000
8 5 11 1000
And More... And More... And More... And More...
